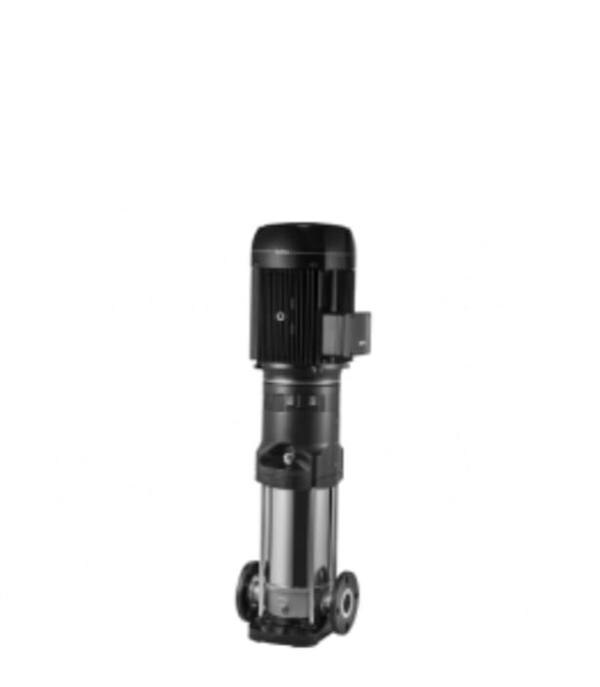

High Pressure Multistage Pump - KDS PUMPS There are many applications that require pumps that can deliver total developed head ratings of 100 metres or above. Boiler feed applications commonly require high heads, especially for the large boilers used in power stations or in large-scale industrial facilities. Other high pressure applications include pressure washing and descaling operations, condensate circulation systems, and water purification/ desalination systems based on the reverse-osmosis process. Non–industrial applications that make use of high-pressure pumps include firefighting equipment, snow-making equipment for winter sports and service water supply systems for tall buildings. RANGE Capacity : Up to 80 M3/hr Head : Up to 300 metres Discharge Size : 32 mm to 100 mm Temperature : Up to 140°C Pressure : Up to 30 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Mine – Dewatering & Descaling. -Water supply to high rise buildings. -High pressure application in Pulp & Paper mills. -Water-Transfer of liquid containing vapor, air or gas. -Boiler feed, marine, refrigeration, fuel oil. -Hot & cooling water circulating. -Fire-fighting system. -Power plant, Booster plants. -High pressure testing -Filter Press Feeding/Washing. -Sprinkling irrigation FEATURES -Axial thrust compensated by balancing drum. -Barrel type construction. -High pump efficiency. -Low maintenance cost. -Mechanical seal or gland packing. -Multi stage with single suction die casting closed impeller. -Heavy duty ball bearings capable to carry thrust load on either direction. -Grease or oil lubricated bearings. -Un-cooled soft-packing are provided with sealing connection on a suction side. -For higher pumped media temperatures, a stuffing box can be provided with cooling cover facilitating the external cooling. -All the flanges are faced and drilled as per din standards. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION - C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. - Duplex stainless steel, Super duplex stainless steel

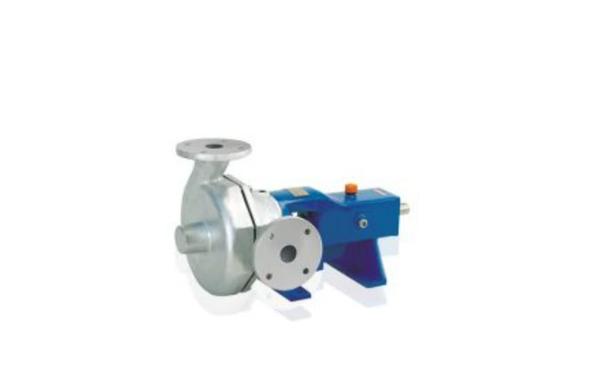

Filter Press Pump - KDS PUMPS Filter press pump is a centrifugal type with semi-open, nonblogging impeller pump with single row deep grooved heavy duty ball bearing with oil lubrication. It is the most suitable filter press pump for working under very high back pressure. Our filter press pump sludge from the bottom of the sludge holding tank into the filter press. It is mostly used in handling the slurry which is about the consistency of a material. RANGE Capacity : Up to 200 M3/hr Head : Up to 100 metres Discharge Size : 40 mm to 100 mm Temperature : Up to 140°C Pressure : Up to 10 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Filter press feeding. Slurry transfer. -Waste Water treatment plant (ETP/STP). -Evaporator and Scrubber application. -Dyes & Intermediates, Steel Rolling mills. -Pulp & Paper, Sugar, Salt, Starch industries. -Zink & Copper plant. -Ceramic, General industrial services etc… FEATURES -Single stage semi open impeller. -Special design for filter press application. -Heavy duty shaft, sleeve & bearings. -Noise & maintenance free. -Long life due to replaceable wearing parts.. -High efficiency, low power consumption. -Semi open impeller provides axial balancing. -Grease / oil lubricant bearings. -Only positive (+V) suction head. -Suitable with V-belt drive or direct coupled with a motor. -Foot and centerline mounting options. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION - C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. - Duplex stainless steel, Super duplex stainless steel

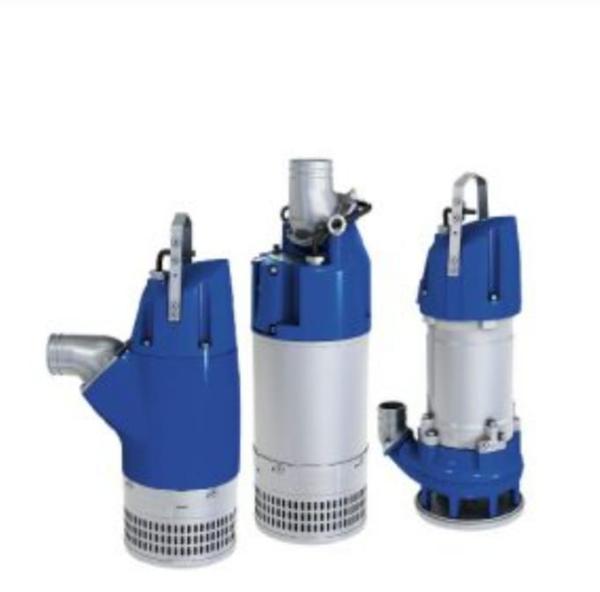

Dewatering Submersible Pump - KDS PUMPS Dewatering is no more about removing excess water from one place or another, it has lot of other challenges like… dewatering sites are generally open to sky, prone to large amount of mud & debris & are often unmanned. Pumps need to be moved to multiple locations & thus need to be easily portable. Pumps movement, fitment & electrical connections are often done by unskilled laborer & thus pumps are prone to damage during its movement or faulty electrical connections. Many a times due to ignorance, omission or un foreseen emergency pumps are put in to operation directly on main supply without using control panel in between. Due to this, pumps are generally exposed to erratic power supply, whether used on electrical supply or supply through genset. Due to all these uncertainties site engineers have to live with frequent breakdown of pump sets due to dry running, single phasing or mechanical jamming. RANGE Capacity : Up to 650 m3/hr Head : Up to 60 metres Temperature : Up to 70°C HP : Up To 100 Speed : 2880 rpm Dilivery Size : 32 mm To 250 mm Solid Size : 10 to 50 mm Connection: : DOI/SD/ATS Voltage & Phase : 415V, 3 Phase Insulation / Protection : ‘ F ‘ Class / ‘H’ Class – IP 68 Discharge Size : 32 mm to 200 mm Cable : PVC/ EPR Insulated Double Seated Copper Conductor Flexible Mechanical Seal: : Double Mechanical Seals(Tungsten Carbide Vs Tungsten Carbide) APPLICATION -Chemical Injection in various applications. -Swimming Pool chlorination. -Medical application. -Water and waste water treatments. -Electro-Plating application. FEATURES -Precise chemical injection and economical cost. -Effective and reliable operation. -Manual on/off control. -High speed operation. -Double ball check valve operation. -Compact Size. -Long lasting PTFE diaphragm. MATERIAL OF CONTRUCTIONS -C.L, C.S, S.S ,Allu-Alloy. -Impeller, Casing, Wear plate with Various M.O.C. Bronze, CF8, CF8M, CD4MCU etc…

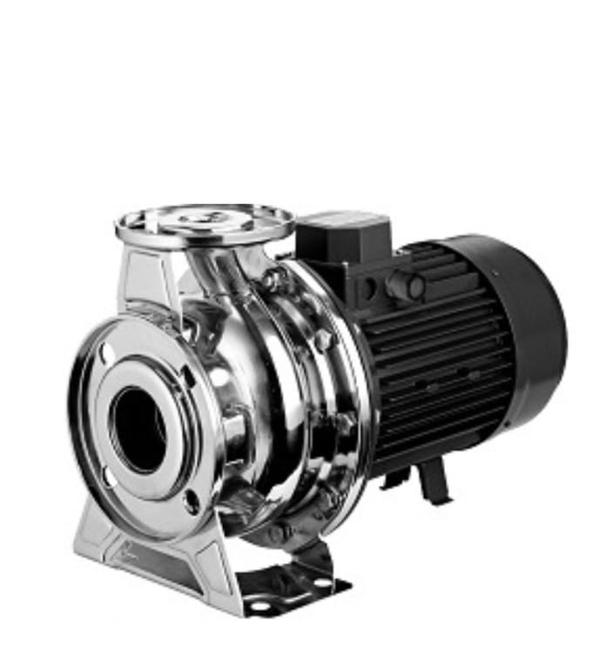

Centrifugal Monoblock Pump - KDS PUMPS Centrifugal Monoblock pump sets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor. RANGE Capacity : Up to 120 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 100 mm Power Rating: : 1.0 hp to 20 hp – three phase 0.5 hp to 2 hp – single phase Voltage Rating : 380 V to 415 V – three phase 200 V to 240 V – single phase 2 Speed : up to 2880 rpm APPLICATION -Gardening and irrigation. -Cooling water circulation. -Oils, solvents and hydrocarbons. -Starch and sugar production. -Agriculture, farms, civil, application. -Industries for clear water handling, cooling tower. -Water supply for domestic use in apartments, hotels, swimming pools, -Automobile service station, hospitals, clubs, hostels, power plants, fire-fighting. FEATURES -Horizontal, Centrifugal, Mono-block type pump fitted with single stage closed Impeller and providing axial balancing of impeller loads. -No fear of motor burning due to wide operating voltage range and Non-overloading power characteristics at any operating point. -Advantage of mounting space saving due to elimination of base plate, coupling and coupling guard. -Long life cycle, reduced maintenance costs. -Low maintenance cost. -Multi stage with single suction die casting closed impeller. -High efficiency impeller. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION C. I, C.S, SS-304, SS316, Bronze,etc

Air Operated Double Diaphragm Pump - KDS PUMPS Air operated double diaphragm pumps are positive displacement pumps, driven by compressed air rather than electric motor. These innovative pumps are ideal choice for meeting your demands on high efficiency and low maintenance cost. These pumps are ideal for applications requiring low pulsation and smooth flow, are available in various materials i.e. aluminum, stainless Steel, Ductile iron, Teflon and PVDF. RANGE Capacity : Up to 55 m3/hr Head : Up to 70 metres Discharge Size : 12 mm to 80 mm Temperature : Up to 120°C Solid Size : Max. 50 mm APPLICATION - Solvents. - Acids. - Caustics - High Viscous Liquids - Abrasive Media. - Hazardous & Flammable Liquids. - Barrel loading – unloading. - Filter press & transfer. - Slurry transfer. FEATURES -Handles a wide variety of fluids with high solids. -Content. -Self-Priming. -Ability to run dry. -Variable flow rate and discharge pressure. -Portable/Simple Installation. -Dead Head. -Shear sensitive. -Explosion Proof. -Pumping efficiency remains constant. MATERIAL OF CONTRUCTIONS - Body – SS316, SS304, PP, PVDF, Aluminum, CI Diaphragm – PTFE, Rubber
