Vertical Sump Pump - KDS PUMPS Vertical sump pumps are intended for use in the industrial pumping applications to pump clean or lightly contaminated liquids, fibrous slurries and liquids containing large solids from the deep sumps. The pumping head is suspended into the pumped liquids and the drive motor is dry installed on the top. The pump has separate discharge pipe and support pipe column. The vertical sump pump has a vertical line shaft with slide bearings or cantilever design without slide bearings. RANGE Capacity : Up to 300 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 125 mm Temperature : Up to 150°C Pressure : Up to 6 Kg/cm2 Speed : Up to 3500rpm APPLICATION -Sulphuric Acid, Nitric Acid, HCL transfer. -Solvents, Diesel & Petrol transfer. -Light Slurries, Organic chemical processing. -Water supply, Cooling Water, Effluent, Cleaning product & Hydrocarbons. -Zink & Copper Plant. -Air conditioning. -Salt, Pharmaceutical, General industrial services etc. FEATURES -Designed to meet specific lengths & application requirements. -Base plate designed to meet exiting support arrangements. -Standardized & modular design. -Standard shaft sealing by oil seal, mechanical seal or stuffing box packing. -Connects the pump casing with the base plate. -Vertical suspended with closed /open impellers. -Closed impeller with back vanes provides axial balancing of impeller loads. -Casing wear plate to protect the volute casing. -Column pipe protects the shaft. -Heavy duty shaft, sleeve & bearings. -Supports the eventual intermediate bush bearings. -Suction strainers, simple mounting & self-priming. -Easy maintenance, replaceable parts. -Compact design using less floor space. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION -C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc… -Duplex stainless steel, Super duplex stainless steel

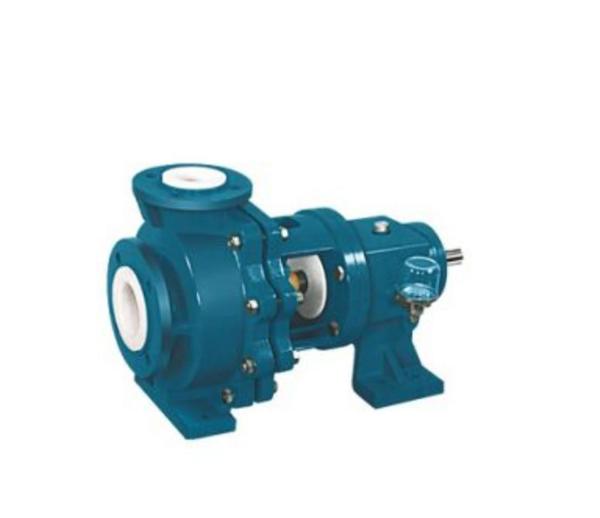

Teflon Lined Pump - KDS PUMPS Teflon Lined Pumps are manufactured using qualitative components and thus, are introduced with the assurance of offering flawless performance in chemical processing. Prices offered are minimal and these products are delivered in a convenient procedure. RANGE Capacity : Up to 250 M3/hr Head : Up to 90 metres Discharge Size : 25 mm to 100 mm Temperature : Max. 200°C Pressure : Up to 9 Kg/cm2 Speed : up to 3500 rp APPLICATION -Water treatment plant, ETP, electro plating, picking & steel rolling mill, Oil industries. -Excellent for transfer and loading – unloading like HCL, Sulphuric Acid/Alkali, and Caustic Liquid. -Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc… -For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc… -Ideal for circulation of chemical in metal finishing industry. -Natural choice for pickling line & scrubber in steel plants. -High capacity transfer pump, filter press for dyes & chemicals, descaling oil & other fuels. -Pesticide / Insecticide Plants, Chlorine Plants. -Pharmaceutical bulk Drug Plants, Heavy duty chemical plants.. FEATURES -All wetted parts are solid injection moulded PFA/FEP, extra wall thickness to combat severe corrosive condition. -Replaceable PFA/FEP casing liner-reduces the maintenance cost. -Resistance to most chemicals and solvents. -High thermal stability – continuous duty up to 120ºC temperature. -Mechanical strength at elevated temperature. -High abrasion resistance. -Resistance to sunlight and nuclear radiation, fungus.- -Low flame and smoke characteristics. -Low permeability to most gases and liquids. -Cold weather impact strength. -Low maintenance cost. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION - PFA/FEP

Submersible Mixer - KDS PUMPS Submersible Mixers are ideal for agitating, blending, mixing, dissolving, and suspension of solids in municipal treatment plants, industry, and agriculture. RANGE Temperature : up to 95 deg° C Viscosity : up to 20 cst Sp. Gr. : 1.15 Solids content : up to 10% by wt Power Supply : 415V, 50 Hz, 3 phase APPLICATION -Equalisation/collection tanks -Neutralisation pits -Sludge mixing in STPs -Pre-digestion mixing -Anaerobic digesters -Nitrification and De-Nitrifications tanks -Chemical Mixing Tank (Lime/Poly) FEATURES -Compact, hydraulically optimized design -Self-cleaning -The motor is monitored by temperature sensors and a moisture sensor -Triple dynamic sealing system consisting of two mechanical seals (SIC/SIC) and a lip seal -An absolutely water-tight, resin-embedded cable entry protects -An absolutely water-tight, resin-embedded cable entry protects the motor against moisture -Reduced energy costs -Shorter mixing times -Minimal risk of motor overloading -Easy installation -Small space requirements MATERIAL OF CONSTRUCTION - CI / SS304 / SS316 / SS316L

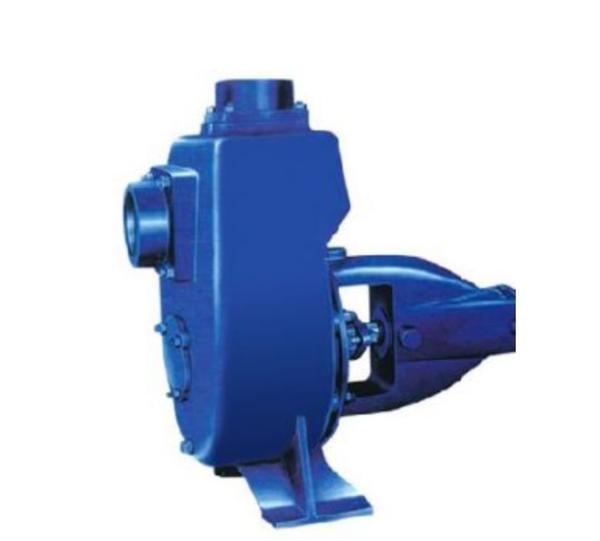

Self Priming Non-Clog Mud Pump - KDS PUMPS self-priming mud pump is best industrial mud pump used to circulate the mud. It is a non clog and self-priming type. Mostly used in marine, industrial, civil, construction, public utilities, polluted liquid including solid, sewage, oil well drilling, waste handling, etc. RANGE Capacity : Up to 640 M3/hr Head : Up to 55 metres Discharge Size : 40 mm to 200 mm Temperature : Up to 110°C Pressure : Up to 5 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Pier, Excavations, Pits, Pot-holes etc, Grampanchayat, Municipalities, Public Health Departments, Large Housing Colonies, industries like --Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges. -Mobile machinery – Cooling water for Marine Engines & Shovels. -Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding. -Waste Water treatment plant (ETP/STP) -Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools, Gas, Oils, Engine cooling. -Vessels, Industrial-pumping Petroleum products, Chemical. -Public utilities-sewage pumping. FEATURES -Non-clogging designed for high efficiency. -Semi open type &hand finished for perfect smooth flow. -Heavy duty built in volute having self-priming features & integrally cast with base from closed grained C.I. castings. -Companion flanges are supplied along with pumps. -Long life due to replaceable wearing parts. -Quick automatic self-priming action. -Repairs possible without disturbing the pipe connection due to back pull out design. -Suitable for motor/engine, portable when fitted on trolley/trailer. -No foot valve required. -Priming of suction pipe line not required. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTURCTION -C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. -Duplex stainless steel, Super duplex stainless steel

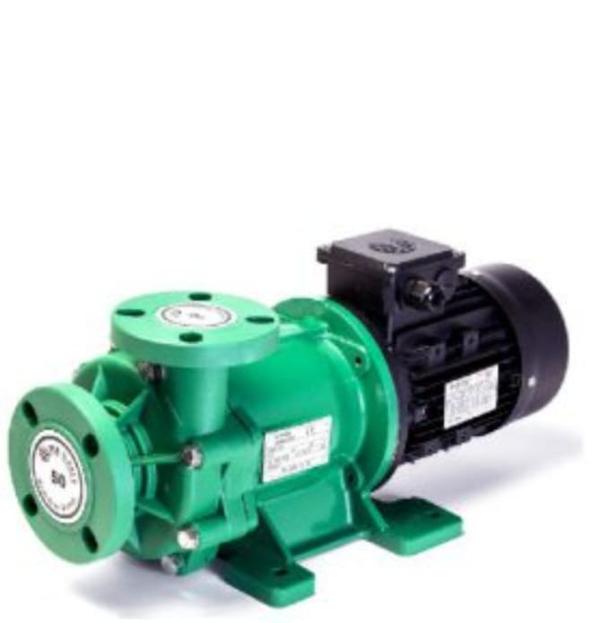

Seal-less Magnetic Centrifugal Pump - KDS PUMPS Seal-less Magnetic Centrifugal Pump is used when there is a need to contain toxic, dangerous and/or valuable fluids. Application may be dictated by space, noise, environment or safety regulations. This section outlines types, nomenclatures and components of seal less rotodynamic-type pumps. Seal-less Magnetic Centrifugal Pump design is founded on eliminating the dynamic shaft seal between the wetted end of a centrifugal pump and the atmosphere. This is achieved by enclosing the pump and its rotor assembly inside a pressure vessel with the pumped fluid. RANGE Capacity : Up to 5000 LPM Head : Up to 98 MTR APPLICATION -Wide chemical handling corrosive applications like bromine transfer -Large chemical processing house -Strong chemical resistance applications -Medical application -Water and waste water treatments -Electro-Plating application FEATURES -Large mechanical strength design for abnormal conditions. -Split Volume casing improves efficiency -Robust construction for easy maintenance -Seal-less design enhance leak free operations. MATERIAL OF CONSTRUCTION - GFRPP, ETFE, PVDF, PFA, CFRETFE

Rotary Gear Pump - KDS PUMP Rotary Gear Pump is self priming, foot mounting type positive displacement rotary gear pump. These pumps can be operated up to pressure of 10 kg/cm² with 5 LPM to 500 LPM flow capacity. These pumps are designed to run at 1440 RPM up to viscosity of 50,000 to 1,00,000 SSU and maximum temperature up to 200ºc. It is desirable to reduce speed for size above 1½” performance at low speed is always advantageous as it improves efficiency, reduce noise level and enhances operational life. The capacity will reduce in proportion to the speed RANGE Capacity : Up to 200 M3/hr Head : Up to 120 metres Discharge Size : 12 mm to 120 mm Temperature : Up to 200°C Pressure : Up to 12 Kg/cm2 Speed : Up to 1440 rpm APPLICATION -LGP pumps are gravity suction heavy duty PD pumps with specially designed for the low NPSH application like Oil separator, Vacuum --application, Hot oil pumping application, etc… -Barrels unloading. -Large use rolling mills for picking and solvent plant. -Pharmaceutical. -Laminates. -They can be used for viscous and aggressive fluids. FEATURES -Compact in size, low noise, and high efficiency. -Easy maintenance, longer life, economical. -An inbuilt pressure relief valve. -Bush bearing with a heavy shaft. -Double helical gears to reduce axial thrust. -Continuous duty. -Handle multiple liquids. -Unique design. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION -C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. -Duplex stainless steel, Super duplex stainless steel

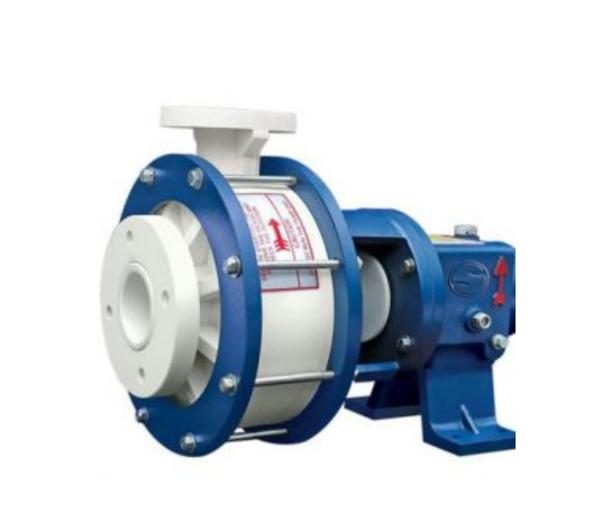

PVDF Lined Pump - KDS PUMPS we have introduced PVDF Lined Pumps, designed & developed at our workplace under our experts’ guidance. These pumps are manufactured using premium quality materials and thus, are capable of delivering efficient performance. Our customers can purchase these products as per their preferred choices, under cost-effective budget. RANGE Capacity : Up to 250 M3/hr Head : Up to 90 metres Discharge Size : 25 mm to 100 mm Temperature : Max. 120°C Pressure : Up to 9 Kg/cm2 Speed : up to 3500 rpm APPLICATION -Water treatment plant, ETP, electro plating, picking & steel rolling mill, Oil industries. -Excellent for transfer and loading – unloading like HCL, Sulphuric Acid/Alkali, and Caustic Liquid. -Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc… -For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc… -Ideal for circulation of chemical in metal finishing industry. -Natural choice for pickling line & scrubber in steel plants. -High capacity transfer pump, filter press for dyes & chemicals, descaling oil & other fuels. -Pesticide / Insecticide Plants, Chlorine Plants. -Pharmaceutical bulk Drug Plants, Heavy duty chemical plants. FEATURES -All wetted parts are solid injection moulded PVDF, extra wall thickness to combat severe corrosive condition. -Replaceable PVDF casing liner-reduces the maintenance cost. -Resistance to most chemicals and solvents. -High thermal stability – continuous duty up to 120ºC temperature. -Mechanical strength at elevated temperature. -High abrasion resistance. -Resistance to sunlight, nuclear radiation and fungus. -Low flame and smoke characteristics. -Low permeability to most gases and liquids. -Cold weather impact strength. -Low maintenance cost. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION - PVDF

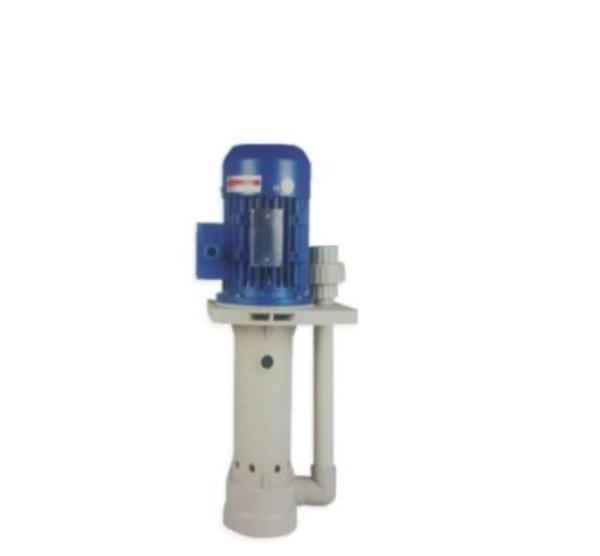

Polypropylene Vertical Pump - KDS PUMPS Vertical Centrifugal process pump can be used in any installation or specially where the saving of space is important factor or mechanical seal not required. These pumps are designed for use where the liquid handled to be of highly corrosive nature or where non-adherence of product or zero metallic contamination is must. These pumps are equally ideal for continuous or intermittent service for hanling conrrosive as well as ultra pure chemicals without fear of corrosion or contamination. All components in the watted end of the pump are moulded of engineered plastic. These pumps are not only less costly than high alloy or exotic metal pumps, but they may be used safely in service where metal pumps are completely inadequate. RANGE Capacity : Up to 55 M3/hr Head : Up to 45 metres Discharge Size : 25 mm to 50 mm Temperature : Up to 80°C Pressure : Up to 4.5 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Electro Plating, Pickling & Steel Rolling Mills. -Water Treatment Plant, Effluent Treatment Plant. -Excellent For Transfer & Loading-unloading like HCL, Sulfuric Acid, Alkali, Caustic Liquid. -Scrubbing Of Corrosive Gases Like NH3, CO2, SO3, SO2, I2, F2, Br2, Cl2, etc… -For Handling Liquids in Various Industries like Textile, Paper, Cellulose, Sugar, Steel, Food, Having Temperature Range, Materials, etc… -Ideal for Circulation of Chemical in Metal Finishing Industry. -Natural Choice for Pickling Line & Scrubber in Steel Plants. -Filter Press for Dyes & Chemicals, Descaling, Oil & Other Fuels. FEATURES -Designed to suit extremely corrosive duties in the process & chemical industries. -Self-venting type casing. -Dynamically & hydraulically balanced impeller with aerodynamic profile vanes. -Pump casing is provided with external metal ring for construction stability. -Grease / oil lubricant bearings. -Pumps are fitted with either mechanical seal or gland packing depending on the service conditions. -Shaft & sleeve of different material depending on the compatibility of the liquid to be handled. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION - PP, PPCP, UHMWPE

Polypropylene Pump - KDS PUMS Seeking a Polypropylene Pump, March Pump has many choices! From 0.5GPM to 120GPM, the range of Polypropylene Pumps March has to offer is exceptional. Polypropylene is the most widely used plastic by March. Polypropylene is also known by it’s chemical name, PP. Polypropylene Plastic is known for its wide ranging chemical resistance. Polypropylene Pumps are commonly used for chemicals such as Fresh Water, Salt Water, DI Water, Citric Acid, Fluosilicic Acid, Formaldehyde, Muratic Acid, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide, Sulfuric Acid, and many more. RANGE Capacity : Up to 300 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 100 mm Temperature : Up to 70°C Pressure : Up to 6 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Electro Plating, Pickling & Steel Rolling Mills. -Water Treatment Plant, Effluent Treatment Plant. -Excellent For Transfer & Loading-unloading like HCL, Sulfuric Acid, Alkali, Caustic Liquid. -Scrubbing Of Corrosive Gases Like NH3, CO2, SO3, SO2, I2, F2, Br2, Cl2, etc… -For Handling Liquids in Various Industries like Textile, Paper, Cellulose, Sugar, Steel, Food, Having Temperature Range, Materials, etc… -Ideal for Circulation of Chemical in Metal Finishing Industry. -Natural Choice for Pickling Line & Scrubber in Steel Plants. -Filter Press for Dyes & Chemicals, Descaling, Oil & Other Fuels. FEATURES -Designed to suit extremely corrosive duties in the process & chemical industries. -Suitable for continuous service. -Self-venting type casing. -Pump casing is provided with external metal ring for construction stability. -Grease / oil lubricant bearings. -Pumps are fitted with either mechanical seal or gland packing depending on the service conditions. -Shaft & sleeve of different material depending on the compatibility of the liquid to be handled. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION - PP, PPCP, UHMWPE

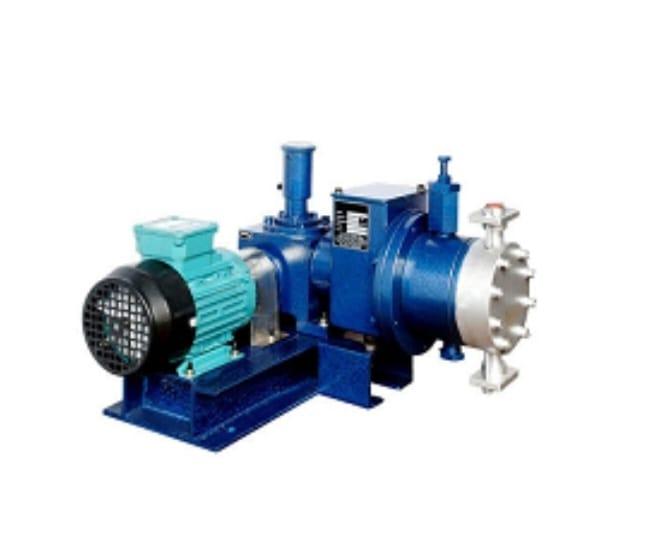

Metering Dosing Pump - KDS PUMPS Metering pumps for very small flow rates. An especially cost-effective solution when fluid components must be metered proportionally to a variable reference value. RANGE Capacity : Up to 2700LPH Pressure : Up to 17 bar Speed : Up to 360 spm APPLICATION -Chemical Injection in various applications -Swimming Pool chlorination -Medical application -Water and waste water treatments -Electro-Plating application FEATURES -Precise chemical injection and economical cost -Effective and reliable operation -Manual on/off control -High speed operation -Double ball check valve operation -Compact Size -Long lasting PTFE diaphragm MATERIAL OF CONSTRUCTION - SS-304, SS316, PVC, PVDF

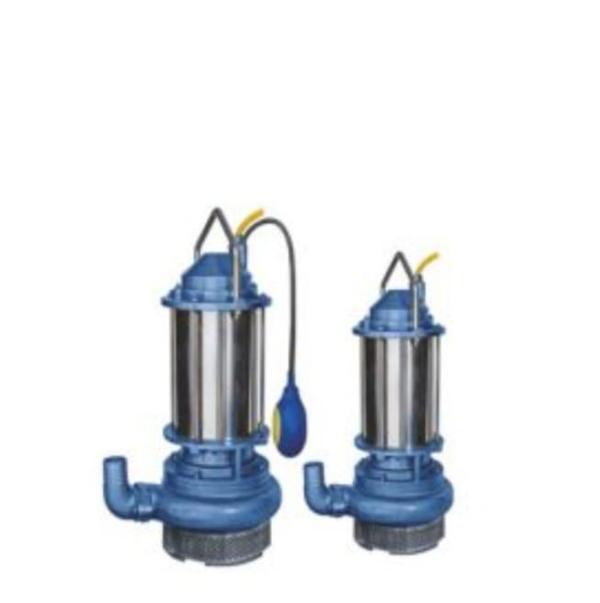

Light Duty Sewage Submersible Pump - LDS PUMPS Light duty sewage submersible pump has synchronous speed 3000 rpm of electric motor. Therefore it has low torque in comparison with heavy duty sewage pump, because torque is inversely proportional to speed, as the speed increases torque decrease and 3000 rpm is the highest speed at 50Hz frequency. This pump is suitable for handling screened sewage i.e. waste water, drainage, in some effluent etc. RANGE Capacity : Up to 150 M3/hr Head : Up to 70 metres Temperature : Up to 45°C HP : 0.5 to 20 (Up to 3 hp in single Phase single phase) Delivery Size : 32 mm to 150 mm Solid Size : 50 mm Connection : DOI/SD Voltage & Phase : 415 V , 3 Phase / 230 V, 1 Phase Up to 3 HP Insulation/Protection : ‘F’ Class, ‘H’ Class / IP 68 Motor : 2 pole continues duty dry type squirrel cage Induction Motor Cable : PVC/EPR Insulated Double Seated Copper Conductor Flexible Cable Mechanical Seal : Bi-Directional Twin Mechanical Seal with Various face combination looking to the application. APPLICATION -Muddy water transfer -Swimming pool. -Dewatering of ponds, basement of huge building -Power plant. -Effluent transfer, ETP,STP, waste water treatment plant. -Used in hotel, hospitals, railways, dairy, chemical ind, sugar, steel, cement,food beverages etc… FEATURES -These pumps are wet-installed type submersible motor pumps with non-clog impeller. pumps have a robust design for continuous duty operation for various slurry applications. -Handling of all types of abrasive or aggressive waste water in water & waste water engineering as well as industry, especially untreated ------- sewage containing long fibers & solid substances, fluids containing gas/air, as well as raw, activated & digested sludge; sea water desalination.

HOT OIL PUMP - KDS PUMPS Hot oil pumps as they are otherwise known, are designed for the movement of heat-transfer oils under high temperature conditions. High temperature oil pumps such as these are primarily used to feed an oil burner or furnace, or as a hot oil circulation pump for circulating the fuel as part of a larger boiler feed or heating system. Hot oil pumps need to be able to handle high temperature, lubricating fluids and are often supplied with a double mechanical seal system to allow the cooling of the seals to deal with such temperatures. RANGE Capacity : Up to 180 M3/hr Head : Up to 80 metres Discharge Size : 32 mm to 80 mm Temperature : Up to 350°C Pressure : Up to 8 Kg/cm2 Speed : up to 3500 rpm APPLICATION -Petro-chemical industries. -Oil industries. -Synthetic-fiber industries. -Textile, dying, printing industries. -Plastic & rubber industries. -Chemical Industries. -Paper & Pulp Industries -Timber making industries. -Sugar Industries. -Food industries. -Pharmaceutical Industries. -Construction industries. FEATURES -Horizontal, single stage, single suction volute type, air-cooled centrifugal pumps with closed impeller pump shaft is supported by two heavy -duty ball bearings, heat resistant mechanical seal, suction flange is on the front and axial, discharge flange is at top & radial. -Centerline supported casing. -Low maintenance cost. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTURCTION - Grey cast iron, CS, Alloy cast steel
