Description

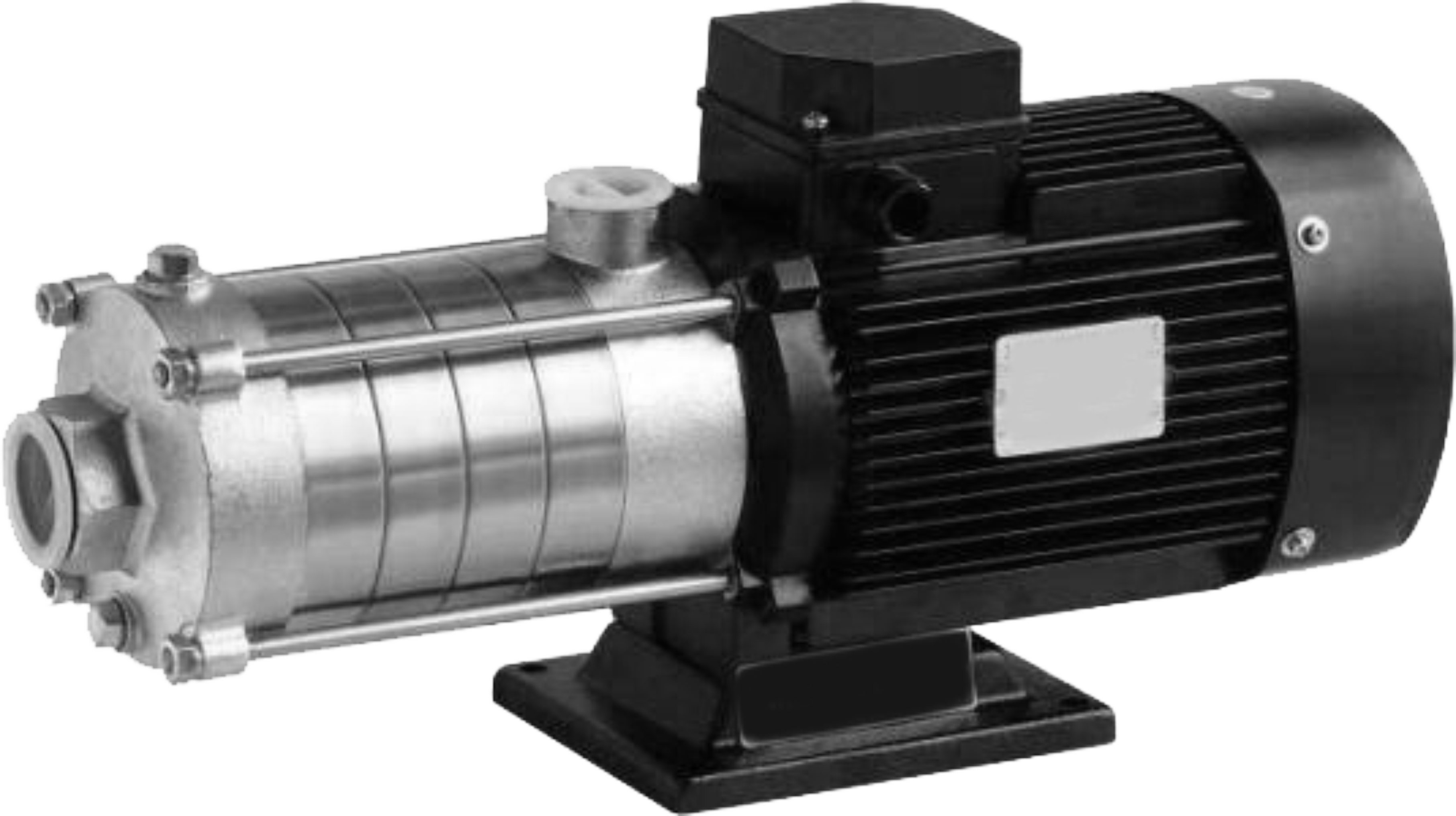

Horizontal Multistage Pump A horizontal multistage pump is a high-pressure centrifugal pump designed with multiple impellers mounted on a horizontal shaft inside a single casing. Each impeller increases the pressure of the liquid step by step, allowing the pump to deliver high pressure with smooth and efficient flow. These pumps are widely used in industrial, commercial, and municipal applications where high-pressure water or fluid transfer is required. Working Principle The liquid enters the pump through the suction inlet and passes through a series of rotating impellers. Each stage increases the pressure of the liquid before it moves to the next stage. After passing through all stages, the fluid is discharged at high pressure through the outlet. Main Features * High-pressure performance * Compact horizontal design * Smooth and quiet operation * Energy-efficient performance * Low maintenance requirements * Continuous duty operation * Strong and durable construction Major Components * Multiple impellers * Pump casing * Horizontal shaft * Diffusers * Mechanical seal * Bearings * Electric motor Materials Used Horizontal multistage pumps are commonly manufactured using: * Stainless steel * Cast iron Material selection depends on fluid type, pressure, temperature, and application requirements. Applications * Boiler feed systems * Reverse osmosis plants * Pressure boosting systems * Water treatment plants * Irrigation systems * Cooling water circulation * Industrial washing systems * Firefighting systems * Chemical processing industries Advantages * High efficiency * Reliable operation * Long service life * Space-saving installation * Stable pressure output * Reduced energy consumption Maintenance Routine maintenance includes checking seals, bearings, shaft alignment, and impeller condition. Proper maintenance improves pump efficiency and extends operational life. Conclusion Horizontal multistage pumps are ideal for applications requiring high pressure, reliable performance, and efficient fluid handling. Their robust construction and advanced hydraulic design make them a preferred choice for industrial and commercial pumping systems worldwide.
