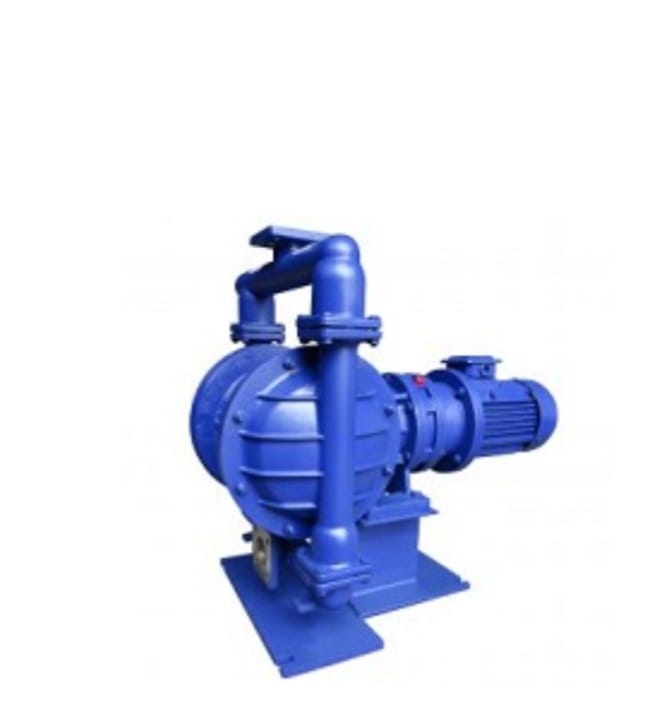

AODD PUMP by KDS

AIR OPERATED DOUBLE DIAPHRAGAM PUMP - KDS PUMPS

INR 22850
Phone Number

08048047610

Please keep 0 before dialling the number.

Email Address rohit@kdspumps.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address 30, Ved 2 Industrial Park ,B/H Shreenath Estate, Kathwada, Ahmedabad, Gujarat ,India.

Ahmedabad, India, 382430

Description

Air Operated Double Diaphragm Pump - KDS PUMPS Air operated double diaphragm pumps are positive displacement pumps, driven by compressed air rather than electric motor. These innovative pumps are ideal choice for meeting your demands on high efficiency and low maintenance cost. These pumps are ideal for applications requiring low pulsation and smooth flow, are available in various materials i.e. aluminum, stainless Steel, Ductile iron, Teflon and PVDF. RANGE Capacity : Up to 55 m3/hr Head : Up to 70 metres Discharge Size : 12 mm to 80 mm Temperature : Up to 120°C Solid Size : Max. 50 mm APPLICATION - Solvents. - Acids. - Caustics - High Viscous Liquids - Abrasive Media. - Hazardous & Flammable Liquids. - Barrel loading – unloading. - Filter press & transfer. - Slurry transfer. FEATURES -Handles a wide variety of fluids with high solids. -Content. -Self-Priming. -Ability to run dry. -Variable flow rate and discharge pressure. -Portable/Simple Installation. -Dead Head. -Shear sensitive. -Explosion Proof. -Pumping efficiency remains constant. MATERIAL OF CONTRUCTIONS - Body – SS316, SS304, PP, PVDF, Aluminum, CI Diaphragm – PTFE, Rubber

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image

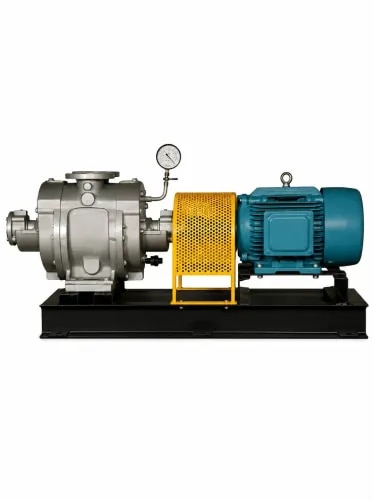

Vacuum Pump

Single Stage Vacuum Pump by KDS PUMPS INDUSTRIES is a high-performance vacuum solution designed for reliable and continuous operation across a wide range of industrial applications. Manufactured using premium-quality materials and precision engineering, these pumps provide efficient vacuum generation with low maintenance and excellent energy efficiency. Our Single Stage Vacuum Pumps are widely used in industries such as pharmaceuticals, chemical processing, food & beverage, packaging, printing, plastics, laboratories, vacuum filtration, drying systems, woodworking, and CNC machinery. They are ideal for applications requiring consistent vacuum performance, smooth operation, and long service life. KDS Single Stage Vacuum Pumps are available in various capacities to meet different process requirements. Their compact design, robust construction, and corrosion-resistant components ensure dependable performance even under demanding operating conditions. The pumps feature low noise levels, high volumetric efficiency, easy installation, and simplified maintenance, making them a cost-effective choice for industrial users.
