Description

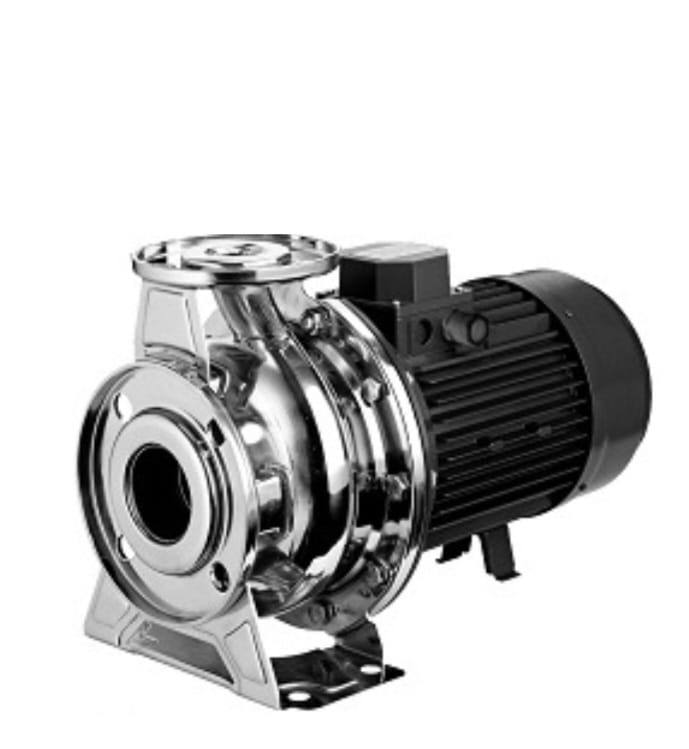

Centrifugal Monoblock Pump - KDS PUMPS Centrifugal Monoblock pump sets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor. RANGE Capacity : Up to 120 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 100 mm Power Rating: : 1.0 hp to 20 hp – three phase 0.5 hp to 2 hp – single phase Voltage Rating : 380 V to 415 V – three phase 200 V to 240 V – single phase 2 Speed : up to 2880 rpm APPLICATION -Gardening and irrigation. -Cooling water circulation. -Oils, solvents and hydrocarbons. -Starch and sugar production. -Agriculture, farms, civil, application. -Industries for clear water handling, cooling tower. -Water supply for domestic use in apartments, hotels, swimming pools, -Automobile service station, hospitals, clubs, hostels, power plants, fire-fighting. FEATURES -Horizontal, Centrifugal, Mono-block type pump fitted with single stage closed Impeller and providing axial balancing of impeller loads. -No fear of motor burning due to wide operating voltage range and Non-overloading power characteristics at any operating point. -Advantage of mounting space saving due to elimination of base plate, coupling and coupling guard. -Long life cycle, reduced maintenance costs. -Low maintenance cost. -Multi stage with single suction die casting closed impeller. -High efficiency impeller. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION C. I, C.S, SS-304, SS316, Bronze,etc
