Description

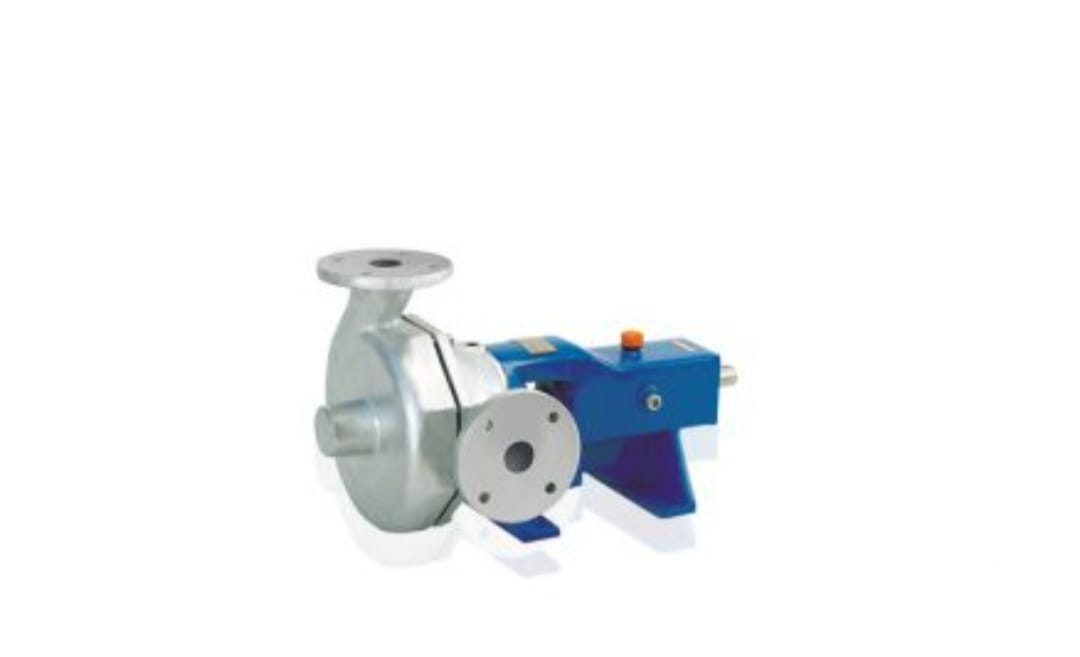

Filter Press Pump - KDS PUMPS Filter press pump is a centrifugal type with semi-open, nonblogging impeller pump with single row deep grooved heavy duty ball bearing with oil lubrication. It is the most suitable filter press pump for working under very high back pressure. Our filter press pump sludge from the bottom of the sludge holding tank into the filter press. It is mostly used in handling the slurry which is about the consistency of a material. RANGE Capacity : Up to 200 M3/hr Head : Up to 100 metres Discharge Size : 40 mm to 100 mm Temperature : Up to 140°C Pressure : Up to 10 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Filter press feeding. Slurry transfer. -Waste Water treatment plant (ETP/STP). -Evaporator and Scrubber application. -Dyes & Intermediates, Steel Rolling mills. -Pulp & Paper, Sugar, Salt, Starch industries. -Zink & Copper plant. -Ceramic, General industrial services etc… FEATURES -Single stage semi open impeller. -Special design for filter press application. -Heavy duty shaft, sleeve & bearings. -Noise & maintenance free. -Long life due to replaceable wearing parts.. -High efficiency, low power consumption. -Semi open impeller provides axial balancing. -Grease / oil lubricant bearings. -Only positive (+V) suction head. -Suitable with V-belt drive or direct coupled with a motor. -Foot and centerline mounting options. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION - C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. - Duplex stainless steel, Super duplex stainless steel
