Hot oil pumps as they are otherwise known, are designed for the movement of heat-transfer oils under high temperature conditions. High temperature oil pumps such as these are primarily used to feed an oil burner or furnace, or as a hot oil circulation pump for circulating the fuel as part of a larger boiler feed or heating system.

Hot oil pumps need to be able to handle high temperature, lubricating fluids and are often supplied with a double mechanical seal system to allow the cooling of the seals to deal with such temperatures.

RANGE

Capacity : Up to 180 M3/hr

Head : Up to 80 metres

Discharge Size : 32 mm to 80 mm

Temperature : Up to 350°C

Pressure : Up to 8 Kg/cm2

Speed : up to 3500 rpm

APPLICATION

-Petro-chemical industries.

-Oil industries.

-Synthetic-fiber industries.

-Textile, dying, printing industries.

-Plastic & rubber industries.

-Chemical Industries.

-Paper & Pulp Industries

-Timber making industries.

-Sugar Industries.

-Food industries.

-Pharmaceutical Industries.

-Construction industries.

FEATURES

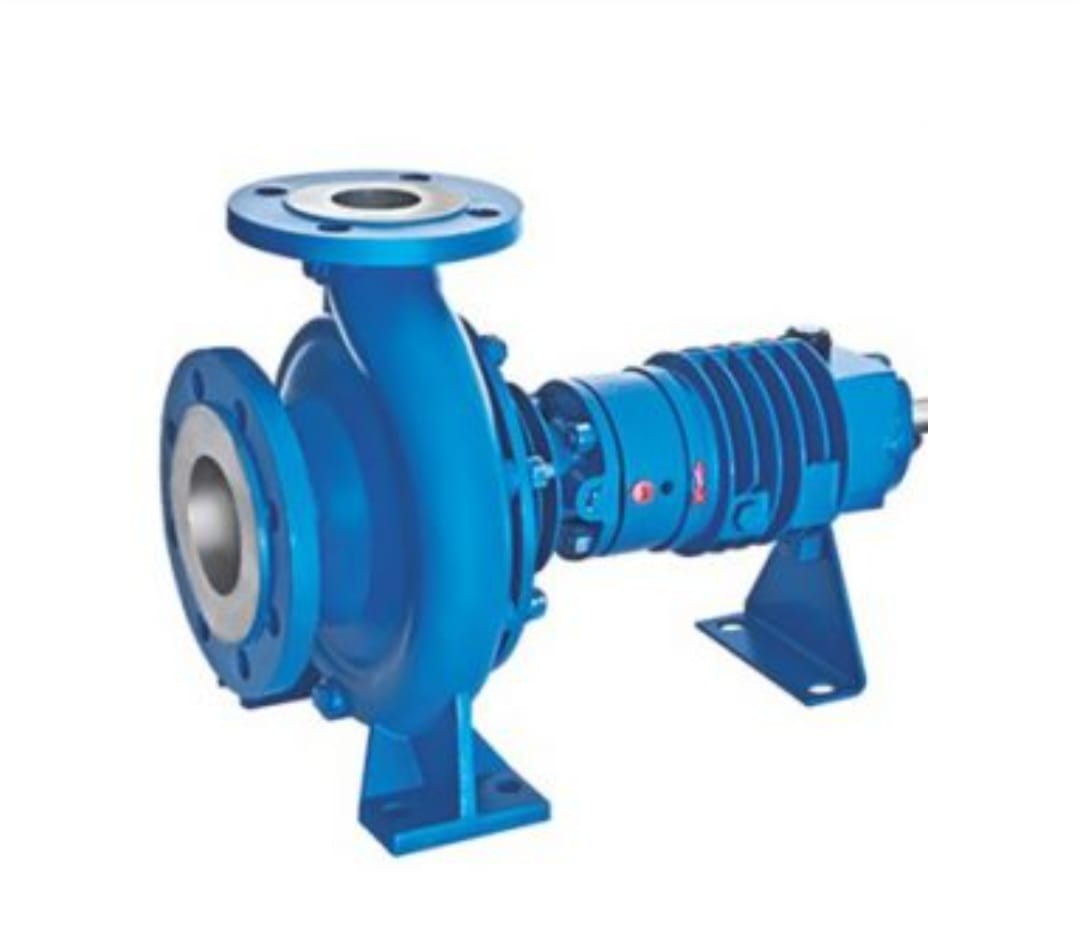

-Horizontal, single stage, single suction volute type, air-cooled centrifugal pumps with closed impeller pump shaft is supported by two heavy -duty ball bearings, heat resistant mechanical seal, suction flange is on the front and axial, discharge flange is at top & radial.

-Centerline supported casing.

-Low maintenance cost.

-Can be supplied bare-shaft or with IE3 motors for energy saving.

MATERIAL OF CONSTURCTION

- Grey cast iron, CS, Alloy cast steel
