Description

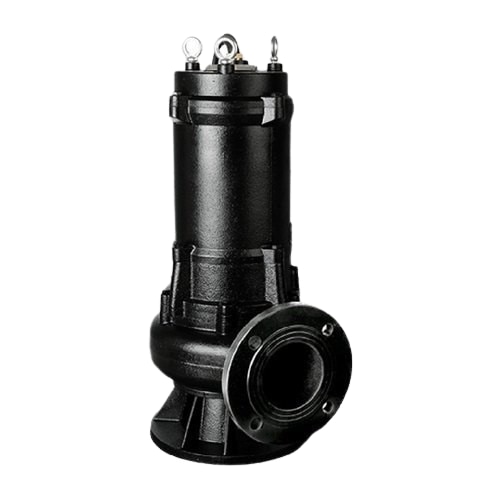

Light Duty Sewage Submersible Pump - LDS PUMPS Light duty sewage submersible pump has synchronous speed 3000 rpm of electric motor. Therefore it has low torque in comparison with heavy duty sewage pump, because torque is inversely proportional to speed, as the speed increases torque decrease and 3000 rpm is the highest speed at 50Hz frequency. This pump is suitable for handling screened sewage i.e. waste water, drainage, in some effluent etc. RANGE Capacity : Up to 150 M3/hr Head : Up to 70 metres Temperature : Up to 45°C HP : 0.5 to 20 (Up to 3 hp in single Phase single phase) Delivery Size : 32 mm to 150 mm Solid Size : 50 mm Connection : DOI/SD Voltage & Phase : 415 V , 3 Phase / 230 V, 1 Phase Up to 3 HP Insulation/Protection : ‘F’ Class, ‘H’ Class / IP 68 Motor : 2 pole continues duty dry type squirrel cage Induction Motor Cable : PVC/EPR Insulated Double Seated Copper Conductor Flexible Cable Mechanical Seal : Bi-Directional Twin Mechanical Seal with Various face combination looking to the application. APPLICATION -Muddy water transfer -Swimming pool. -Dewatering of ponds, basement of huge building -Power plant. -Effluent transfer, ETP,STP, waste water treatment plant. -Used in hotel, hospitals, railways, dairy, chemical ind, sugar, steel, cement,food beverages etc… FEATURES -These pumps are wet-installed type submersible motor pumps with non-clog impeller. pumps have a robust design for continuous duty operation for various slurry applications. -Handling of all types of abrasive or aggressive waste water in water & waste water engineering as well as industry, especially untreated ------- sewage containing long fibers & solid substances, fluids containing gas/air, as well as raw, activated & digested sludge; sea water desalination.
