Polypropylene Vertical Pump - KDS PUMPS

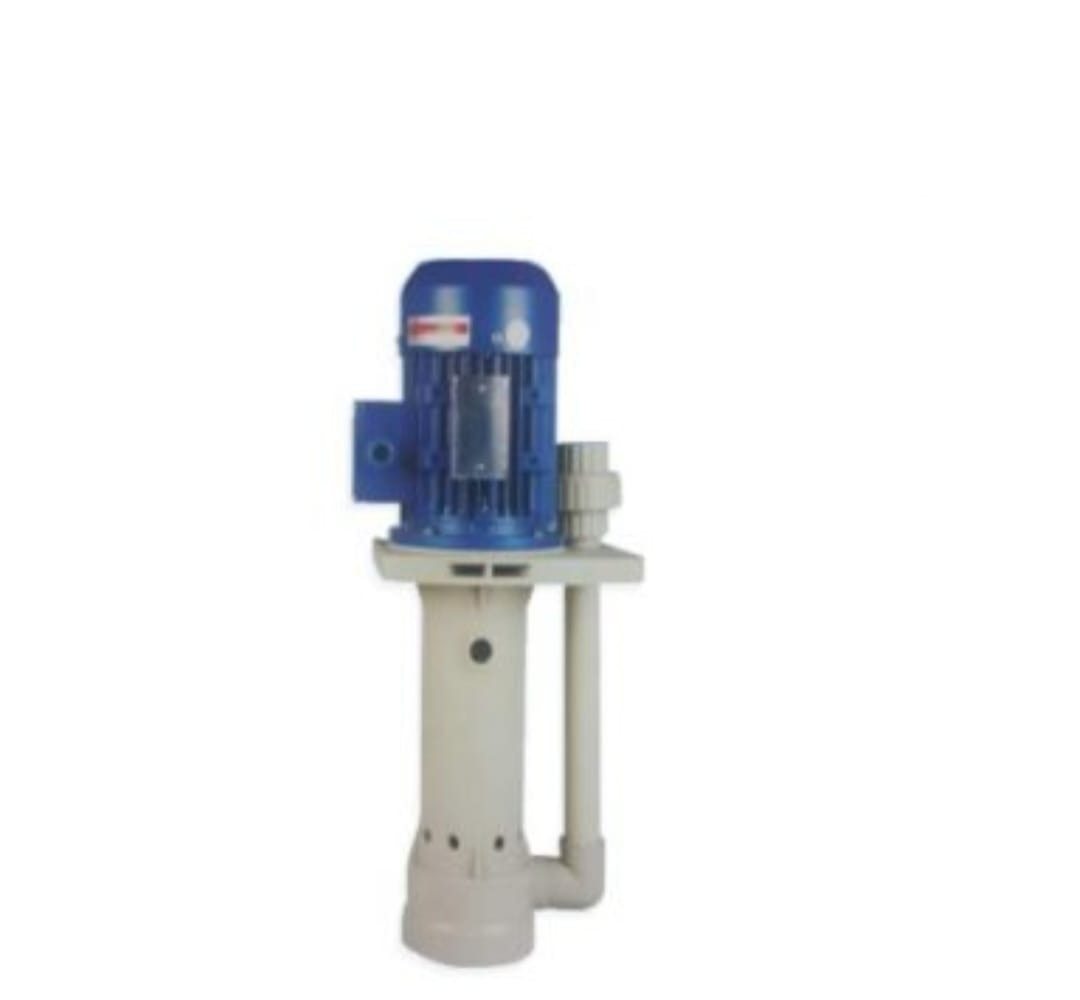

Vertical Sump Pump - KDS PUMPS Vertical sump pumps are intended for use in the industrial pumping applications to pump clean or lightly contaminated liquids, fibrous slurries and liquids containing large solids from the deep sumps. The pumping head is suspended into the pumped liquids and the drive motor is dry installed on the top. The pump has separate discharge pipe and support pipe column. The vertical sump pump has a vertical line shaft with slide bearings or cantilever design without slide bearings. RANGE Capacity : Up to 300 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 125 mm Temperature : Up to 150°C Pressure : Up to 6 Kg/cm2 Speed : Up to 3500rpm APPLICATION -Sulphuric Acid, Nitric Acid, HCL transfer. -Solvents, Diesel & Petrol transfer. -Light Slurries, Organic chemical processing. -Water supply, Cooling Water, Effluent, Cleaning product & Hydrocarbons. -Zink & Copper Plant. -Air conditioning. -Salt, Pharmaceutical, General industrial services etc. FEATURES -Designed to meet specific lengths & application requirements. -Base plate designed to meet exiting support arrangements. -Standardized & modular design. -Standard shaft sealing by oil seal, mechanical seal or stuffing box packing. -Connects the pump casing with the base plate. -Vertical suspended with closed /open impellers. -Closed impeller with back vanes provides axial balancing of impeller loads. -Casing wear plate to protect the volute casing. -Column pipe protects the shaft. -Heavy duty shaft, sleeve & bearings. -Supports the eventual intermediate bush bearings. -Suction strainers, simple mounting & self-priming. -Easy maintenance, replaceable parts. -Compact design using less floor space. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION -C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc… -Duplex stainless steel, Super duplex stainless steel

Teflon Lined Pump - KDS PUMPS Teflon Lined Pumps are manufactured using qualitative components and thus, are introduced with the assurance of offering flawless performance in chemical processing. Prices offered are minimal and these products are delivered in a convenient procedure. RANGE Capacity : Up to 250 M3/hr Head : Up to 90 metres Discharge Size : 25 mm to 100 mm Temperature : Max. 200°C Pressure : Up to 9 Kg/cm2 Speed : up to 3500 rp APPLICATION -Water treatment plant, ETP, electro plating, picking & steel rolling mill, Oil industries. -Excellent for transfer and loading – unloading like HCL, Sulphuric Acid/Alkali, and Caustic Liquid. -Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc… -For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc… -Ideal for circulation of chemical in metal finishing industry. -Natural choice for pickling line & scrubber in steel plants. -High capacity transfer pump, filter press for dyes & chemicals, descaling oil & other fuels. -Pesticide / Insecticide Plants, Chlorine Plants. -Pharmaceutical bulk Drug Plants, Heavy duty chemical plants.. FEATURES -All wetted parts are solid injection moulded PFA/FEP, extra wall thickness to combat severe corrosive condition. -Replaceable PFA/FEP casing liner-reduces the maintenance cost. -Resistance to most chemicals and solvents. -High thermal stability – continuous duty up to 120ºC temperature. -Mechanical strength at elevated temperature. -High abrasion resistance. -Resistance to sunlight and nuclear radiation, fungus.- -Low flame and smoke characteristics. -Low permeability to most gases and liquids. -Cold weather impact strength. -Low maintenance cost. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION - PFA/FEP

Submersible Mixer - KDS PUMPS Submersible Mixers are ideal for agitating, blending, mixing, dissolving, and suspension of solids in municipal treatment plants, industry, and agriculture. RANGE Temperature : up to 95 deg° C Viscosity : up to 20 cst Sp. Gr. : 1.15 Solids content : up to 10% by wt Power Supply : 415V, 50 Hz, 3 phase APPLICATION -Equalisation/collection tanks -Neutralisation pits -Sludge mixing in STPs -Pre-digestion mixing -Anaerobic digesters -Nitrification and De-Nitrifications tanks -Chemical Mixing Tank (Lime/Poly) FEATURES -Compact, hydraulically optimized design -Self-cleaning -The motor is monitored by temperature sensors and a moisture sensor -Triple dynamic sealing system consisting of two mechanical seals (SIC/SIC) and a lip seal -An absolutely water-tight, resin-embedded cable entry protects -An absolutely water-tight, resin-embedded cable entry protects the motor against moisture -Reduced energy costs -Shorter mixing times -Minimal risk of motor overloading -Easy installation -Small space requirements MATERIAL OF CONSTRUCTION - CI / SS304 / SS316 / SS316L
