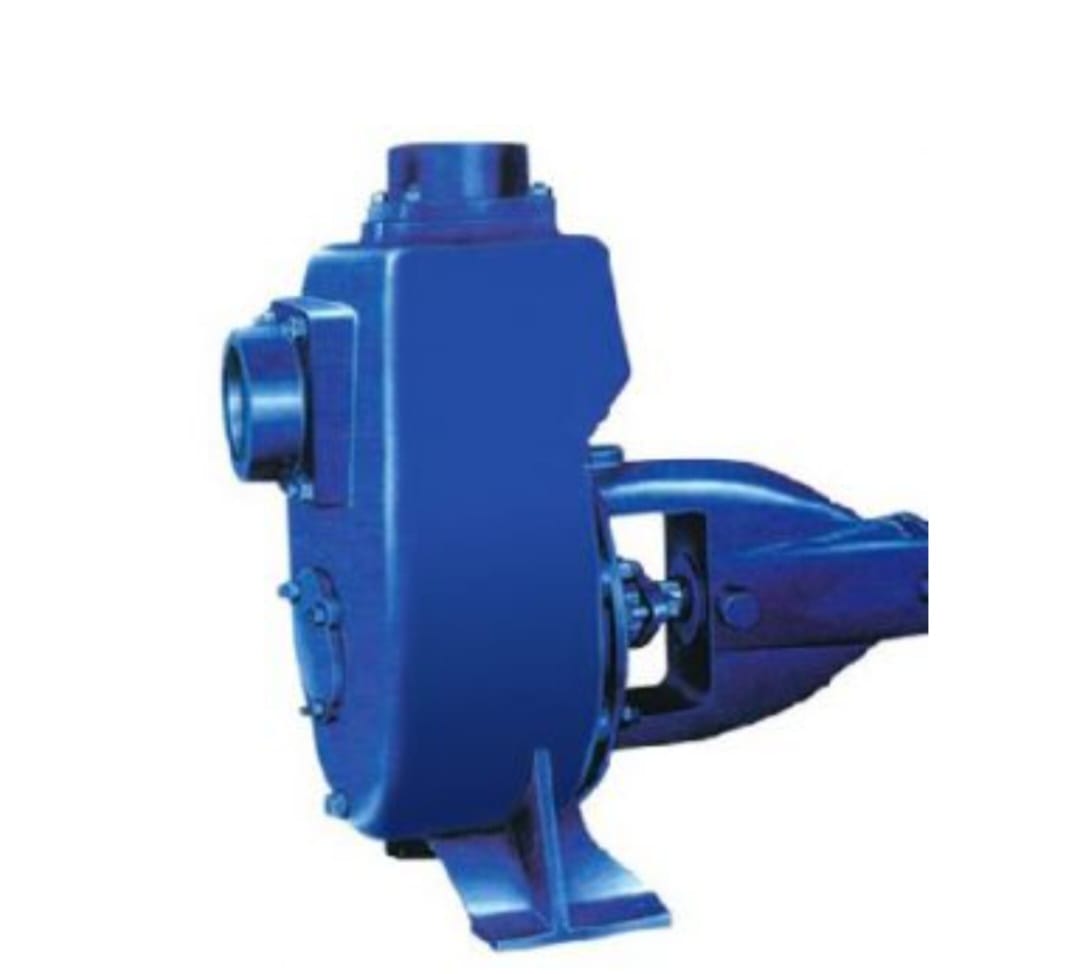

Self Priming Non-Clog Mud Pump - KDS PUMPS

Self Priming Non-Clog Mud Pump - KDS PUMPS

self-priming mud pump is best industrial mud pump used to circulate the mud. It is a non clog and self-priming type. Mostly used in marine, industrial, civil, construction, public utilities, polluted liquid including solid, sewage, oil well drilling, waste handling, etc.

RANGE

Capacity : Up to 640 M3/hr

Head : Up to 55 metres

Discharge Size : 40 mm to 200 mm

Temperature : Up to 110°C

Pressure : Up to 5 Kg/cm2

Speed : Up to 3500 rpm

APPLICATION

-Pier, Excavations, Pits, Pot-holes etc, Grampanchayat, Municipalities, Public Health Departments, Large Housing Colonies, industries like --Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.

-Mobile machinery – Cooling water for Marine Engines & Shovels.

-Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding.

-Waste Water treatment plant (ETP/STP)

-Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools, Gas, Oils, Engine cooling.

-Vessels, Industrial-pumping Petroleum products, Chemical.

-Public utilities-sewage pumping.

FEATURES

-Non-clogging designed for high efficiency.

-Semi open type &hand finished for perfect smooth flow.

-Heavy duty built in volute having self-priming features & integrally cast with base from closed grained C.I. castings.

-Companion flanges are supplied along with pumps.

-Long life due to replaceable wearing parts.

-Quick automatic self-priming action.

-Repairs possible without disturbing the pipe connection due to back pull out design.

-Suitable for motor/engine, portable when fitted on trolley/trailer.

-No foot valve required.

-Priming of suction pipe line not required.

-Can be supplied bare-shaft or with IE3 motors for energy saving.

MATERIAL OF CONSTURCTION

-C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

-Duplex stainless steel, Super duplex stainless steel
