Description

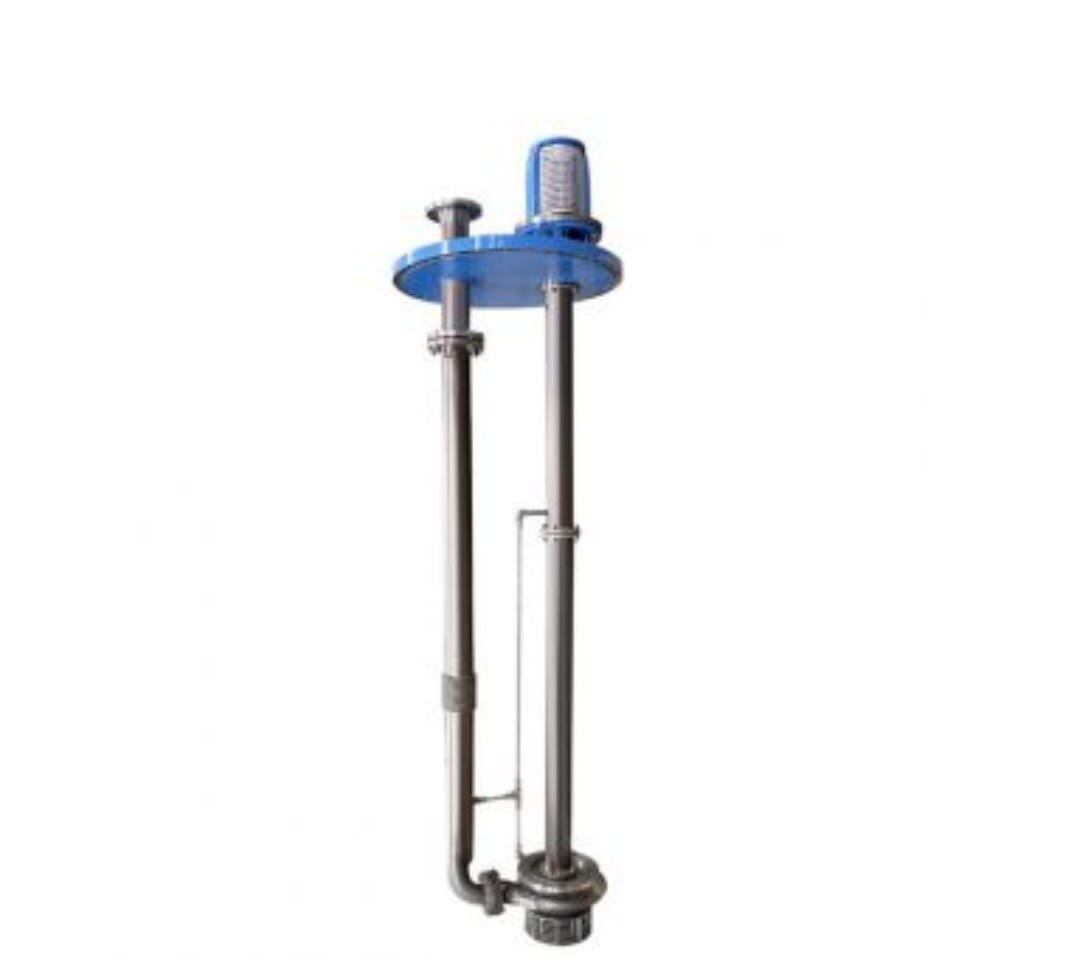

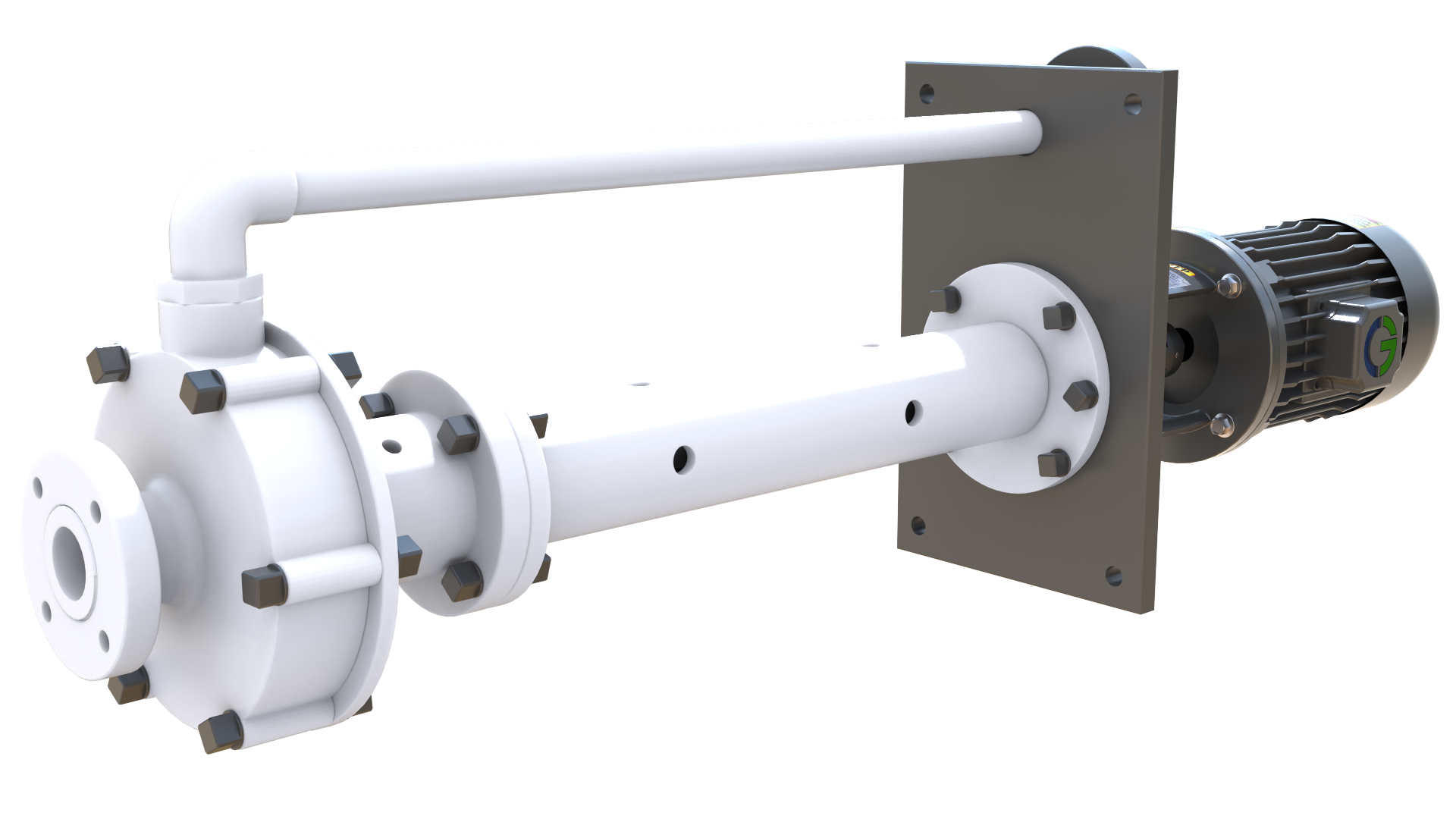

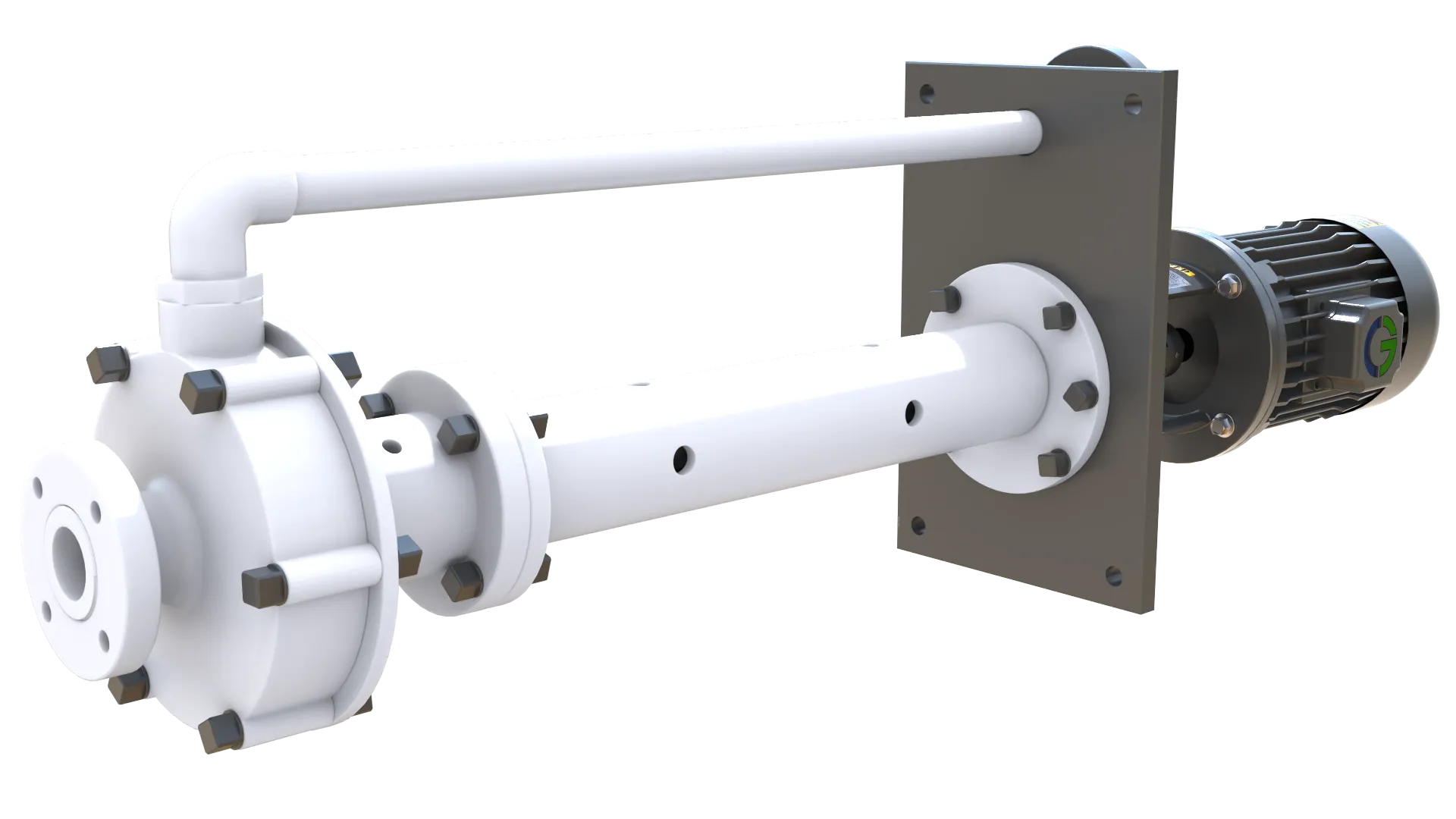

Vertical Sump Pump - KDS PUMPS Vertical sump pumps are intended for use in the industrial pumping applications to pump clean or lightly contaminated liquids, fibrous slurries and liquids containing large solids from the deep sumps. The pumping head is suspended into the pumped liquids and the drive motor is dry installed on the top. The pump has separate discharge pipe and support pipe column. The vertical sump pump has a vertical line shaft with slide bearings or cantilever design without slide bearings. RANGE Capacity : Up to 300 M3/hr Head : Up to 60 metres Discharge Size : 25 mm to 125 mm Temperature : Up to 150°C Pressure : Up to 6 Kg/cm2 Speed : Up to 3500rpm APPLICATION -Sulphuric Acid, Nitric Acid, HCL transfer. -Solvents, Diesel & Petrol transfer. -Light Slurries, Organic chemical processing. -Water supply, Cooling Water, Effluent, Cleaning product & Hydrocarbons. -Zink & Copper Plant. -Air conditioning. -Salt, Pharmaceutical, General industrial services etc. FEATURES -Designed to meet specific lengths & application requirements. -Base plate designed to meet exiting support arrangements. -Standardized & modular design. -Standard shaft sealing by oil seal, mechanical seal or stuffing box packing. -Connects the pump casing with the base plate. -Vertical suspended with closed /open impellers. -Closed impeller with back vanes provides axial balancing of impeller loads. -Casing wear plate to protect the volute casing. -Column pipe protects the shaft. -Heavy duty shaft, sleeve & bearings. -Supports the eventual intermediate bush bearings. -Suction strainers, simple mounting & self-priming. -Easy maintenance, replaceable parts. -Compact design using less floor space. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONSTRUCTION -C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc… -Duplex stainless steel, Super duplex stainless steel
