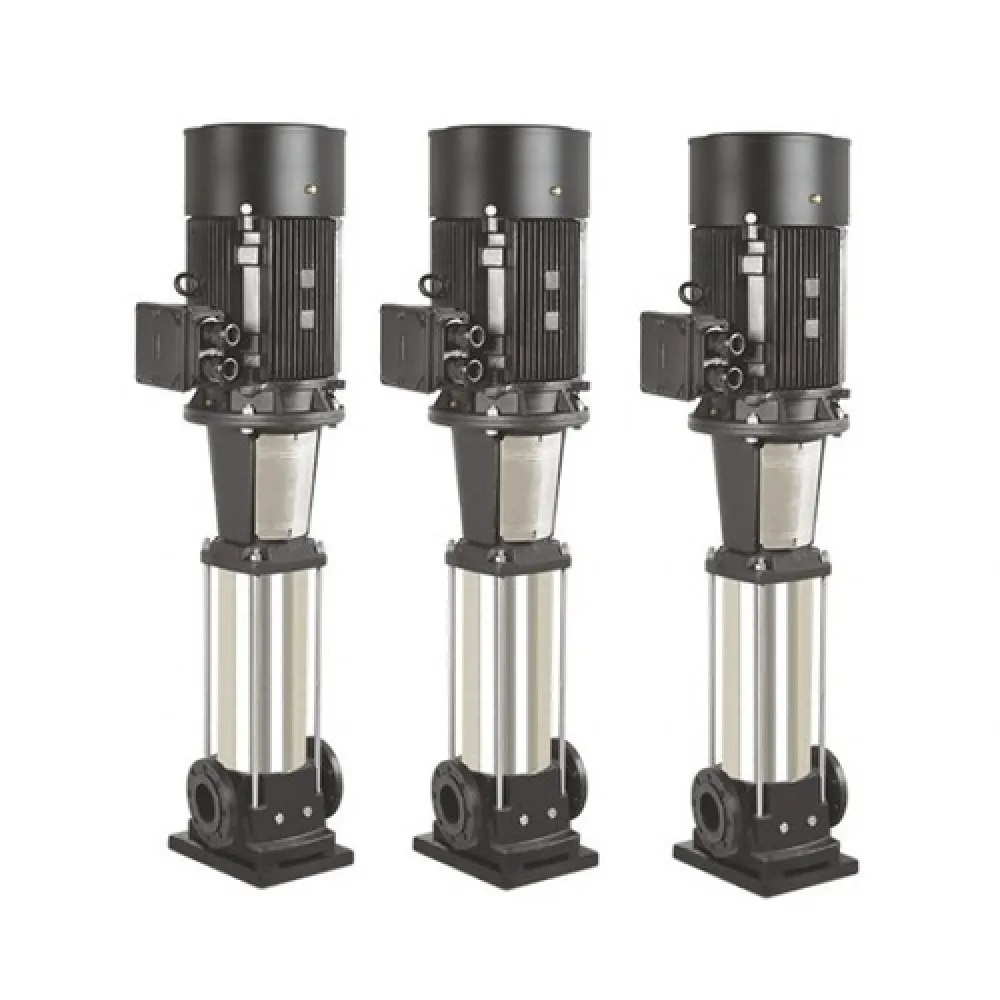

High Pressure Multistage Pump - KDS PUMPS There are many applications that require pumps that can deliver total developed head ratings of 100 metres or above. Boiler feed applications commonly require high heads, especially for the large boilers used in power stations or in large-scale industrial facilities. Other high pressure applications include pressure washing and descaling operations, condensate circulation systems, and water purification/ desalination systems based on the reverse-osmosis process. Non–industrial applications that make use of high-pressure pumps include firefighting equipment, snow-making equipment for winter sports and service water supply systems for tall buildings. RANGE Capacity : Up to 80 M3/hr Head : Up to 300 metres Discharge Size : 32 mm to 100 mm Temperature : Up to 140°C Pressure : Up to 30 Kg/cm2 Speed : Up to 3500 rpm APPLICATION -Mine – Dewatering & Descaling. -Water supply to high rise buildings. -High pressure application in Pulp & Paper mills. -Water-Transfer of liquid containing vapor, air or gas. -Boiler feed, marine, refrigeration, fuel oil. -Hot & cooling water circulating. -Fire-fighting system. -Power plant, Booster plants. -High pressure testing -Filter Press Feeding/Washing. -Sprinkling irrigation FEATURES -Axial thrust compensated by balancing drum. -Barrel type construction. -High pump efficiency. -Low maintenance cost. -Mechanical seal or gland packing. -Multi stage with single suction die casting closed impeller. -Heavy duty ball bearings capable to carry thrust load on either direction. -Grease or oil lubricated bearings. -Un-cooled soft-packing are provided with sealing connection on a suction side. -For higher pumped media temperatures, a stuffing box can be provided with cooling cover facilitating the external cooling. -All the flanges are faced and drilled as per din standards. -Can be supplied bare-shaft or with IE3 motors for energy saving. MATERIAL OF CONTRUCTION - C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc. - Duplex stainless steel, Super duplex stainless steel
